Description

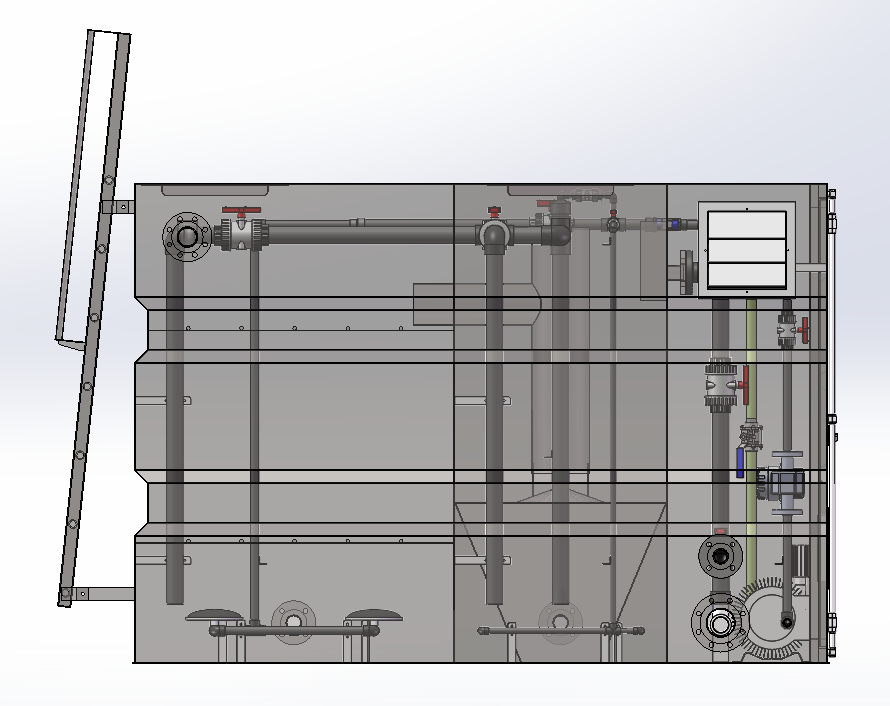

The GCE Compact Wastewater Treatment System is an integrated solution designed for decentralized domestic and light industrial sewage treatment. It features a treatment capacity of 5 cubic meters per day (5 m³/d), with 304 stainless steel construction and external coating for enhanced corrosion resistance and aesthetics.



Key Features

– Treatment Capacity: 5 m³/day

– Material: 304 Stainless Steel

The system adopts the AAO (Anaerobic-Anoxic-Oxic) biological treatment process, which effectively removes organic matter, nitrogen, and partially phosphorus. This proven process is widely used for domestic and light industrial sewage treatment and ensures stable effluent quality.

– Surface Treatment: Anti-corrosion coating

Influent & Effluent Water Quality Indicators

No.	Parameter	Influent	Effluent (Guaranteed Performance)
1	pH	6 ~ 9	6 ~ 9
2	CODCr (mg/L)	≤ 400	≤ 50
3	BOD₅ (mg/L)	≤ 100	≤ 10
4	NH₃-N (mg/L)	≤ 50	≤ 8
5	TP (mg/L)	≤ 5	—
6	Fecal Coliforms	≥ 10⁴	≤ 2.0 MPN/100mL
7	Turbidity (NTU)	—	≤ 10
8	Dissolved Oxygen (mg/L)	—	≥ 1.0

System Dimensions

Length × Width × Height: 2.6m × 1.3m × 1.8m



Standard Configuration

1. Main Equipment:
   – 1 Set of Integrated Treatment Unit
   – 3 Submersible Sewage Pumps
   – 1 Roots Blower

2. Pipes & Valves:
   – Sewage Pipes
   – Air Pipes
   – Manual Valves

3. Instrumentation:
   – 1 Flow Meter
   – 2 Float Level Switches

4. Control System:
   – Electrical Control Cabinet
   – Power Distribution & Automatic Control System
