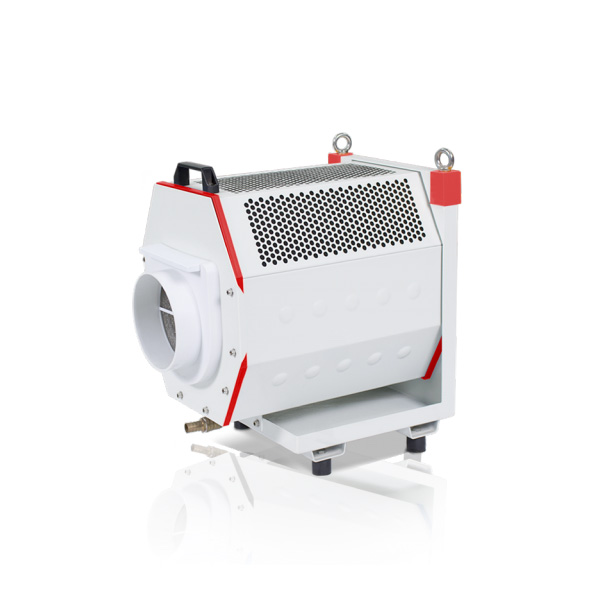

Description

Standard host:

Plug-type pre-filter (washable) Centrifugal filter (washable) Core filter cartridge (consumable) Outlet filter cotton （consumable）

Characteristics:

• Classic design―Bodi's classic
  oil mist collector has a high cost
  performance ratio.

• Efficient filtration―Adopting
  four filtering levels and layer
  by layer purification,Adopting
  a washable filter element
  to save costs and facilitate
  maintenance.

• Easy installation―The top is
  equipped with a handle for easy
  handling and installation of the
  equipment.

• Anticorrosive and durable―High
  quality alloy steel, the whole
  machine to do phosphating antirust treatment, long service life.

Technical parameters:

Model	Airflow	Pressure	Power	Current	Filter area	Weight
	M³/h	Pa	W	A	M³	Kg
HCY-50W1	500	350	370	1.12	1	25
HCY-80W1	800	720	550	1.38	3	28
HCY-120W1	1200	1110	750	1.82	4	35
HCY-160W1	1600	1460	1100	2.60	6	40
HCY-200W1	2000	1850	1500	3.44	8	50

Model	L	W	H	L1	H1	A	B	øD	ød
HCY-50W1	360	300	360	40	230	148	218	100	20
HCY-80W1	400	320	380	50	260	180	250	100	20
HCY-120W1	430	380	465	62	280	180	250	150	20
HCY-160W1	460	430	510	62	302	200	300	150	20
HCY-200W1	480	500	600	70	330	200	280	200	20
