Description

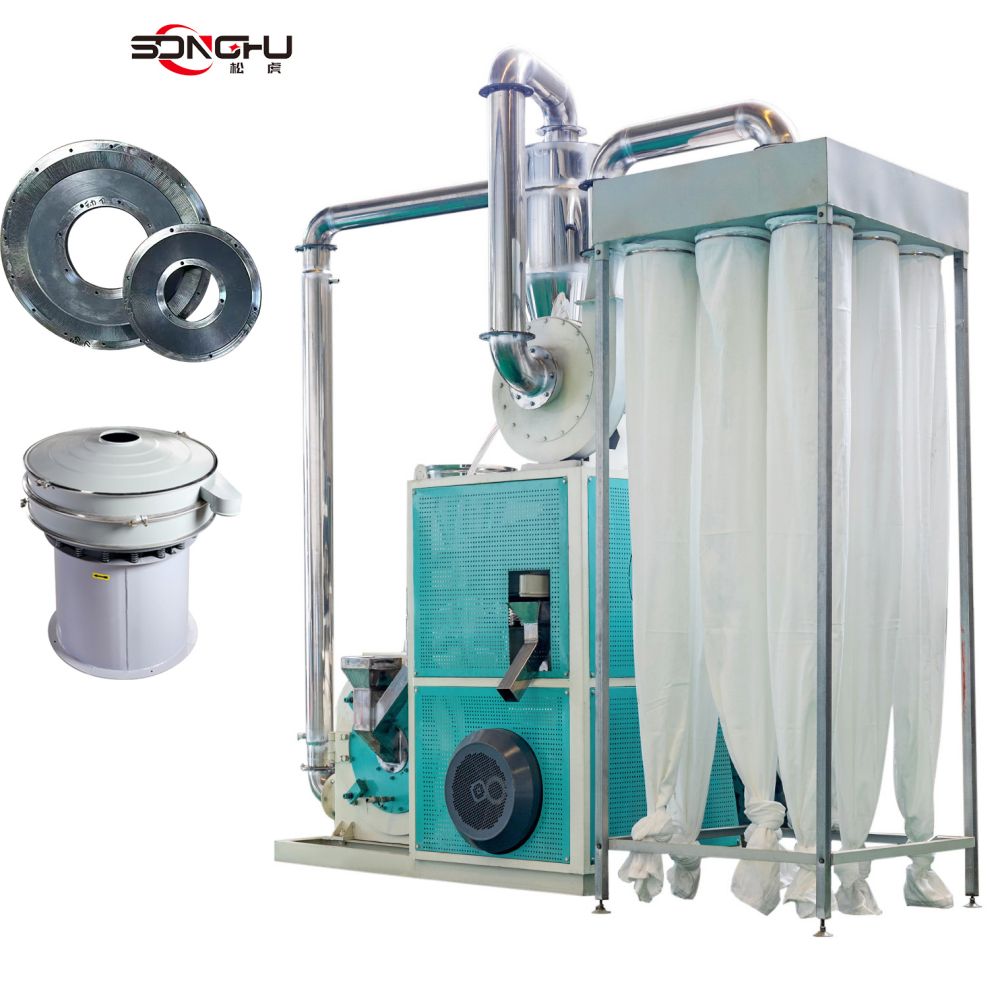

High-Quality PE PP Waste Grinding Machine

Product Parameters

Mode	SHXR-500	SHXR-660	SHXR-800
Pulverizing chamber diameter	φ483 +1	φ583 +1	φ783 ±1
Main motor power (kw)	37/45	55/75/90	110/132
Rotary blade (pc)	24	28	36
Static blade (pc)	12	14	19
Type of cooling	water, forced air
Suction fan power (kW)	4/5.5	7.5/11	11/15
Off fan power (kW)	1.1/1.5/2.2	1.1/1.5/2.2	1.1/1.5/2.2
Vibration screen(mm)	ZDS-800/1000	ZDS-1200/1500	ZDS-1500
Output (kg)	200-550	450-850	750-1350
Weight (kg	1500	1800	2000
Size(mm)	1700*790	1800*790	1900*790

Technical Features

1. The new disc design is of high quality, with strong resistance, and its
lifespan is twice that of ordinary discs.

2. The newly designed professional bearings have a high rotation rate. At the
same time, using only one drive motor ensures efficient grinding, which greatly
reduces machine operation time and engineering control.

3. Easy installation and maintenance; simply open the door to clean.

4. The entire milling process is sealed, preventing dust leakage.

5. Fully automatic design with automatic feeding, discharging, and
sorting.

6. Grinding gap adjustment is simple; use a feeler gauge and adjust bolts for
fine-tuning.

7. The mill uses a water and wind dual cooling system to prevent overheating
of bearings and other parts.

8. Well-known brand accessories, such as bearings and Siemens motors, ensure
long-term operation, saving the hassle of frequent replacements.

9. A wide range of optional accessories is available, allowing for
professional solutions tailored to the customer's budget and processing
requirements.

Applied Materials

All Soft Plastic Scraps/ Granules	PE	HDPE
	PP	PPT
	EVA	LDPE  LLDPE
